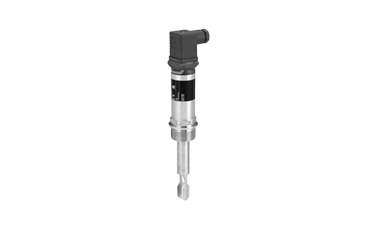

LVL-A7-BG4B-E5PU-CG-EMS液體限位開關現貨供應

???????液位限位開關LVL-A7-BG4B-E5PU-CG-EMS，弗熙堡從事自動化產品經銷多年，一切從客戶實際需求出發，備有大量現貨，竭誠為您服務，您值得選擇！021-51601058

好評系數：

立即詢價

倍加福液位限位開關LVL-A7-BG4B-E5PU-CG-EMS現貨供應

產品特性

? 液體限位開關

? 過程連接G1

? 適用于最高150°C（302°F）的過程溫度

? 堅固的不銹鋼外殼

? 通過LED指示可以進行現場功能檢查

? 使用測試磁鐵進行外部功能測試

General specifications
Measuring method		The tuning fork is brought to its resonance frequency by means of a piezoelectric drive. If the tuning fork is covered by liquid, this frequency changes. The electronics monitor the resonance frequency and indicate whether the tuning fork is freely vibrating or is covered by liquid.
Construction type		device with short tube
Operating mode		MAX = maximum safety: The device keeps the electronic switch closed as long as the liquid level is below the fork. example application: overspill protection MIN = minimum safety: The device keeps the electronic switch closed as long as the fork is immersed in liquid. example application: dry running protection of pumps The electronic switch opens if the limit is reached, if a fault occurs or in the event of a power fails (quiescent current principle)
Supply
Connection		This device may be used with any sequential circuit, as long as the circuit can support the electrical circuit values of the switching elements.
Rated voltage		10 ... 35 V DC
Fusing		external 500 mA slow
Current consumption		< 15 mA
Power consumption		975 mW
Residual ripple		5 V _ss at 0 ... 400 Hz
Input
Measured variable		density
Measurement range		min. 0.7 g/cm³
Output
Output type		switch output
Switching current		max. 250 mA
Directive conformity
Electromagnetic compatibility
	Directive 2014/30/EU	EN 61326-1:2006 , EN 61326-2-3:2006
	Directive 2004/108/EC	EN 61326-1:2006 , EN 61326-2-3:2006
Conformity
Electromagnetic compatibility		NE 21
Degree of protection		IEC 60529
Shock resistance		EN 60068-2-27
Vibration resistance		EN 60068-2-64
Climate class		DIN EN 60068-2-38/IEC 68-2-38
Measurement accuracy
Reference operating conditions		- ambient temperature: 25 °C (+77 °F) - process pressure: 1 bar (14.5 psi) - fluid: water (density: approx. 1 g/cm³, viscosity: 1 mm²/s) - medium temperature: 25 °C (+77 °F) - density setting: > 0.7 g/cm³ - switching time delay: standard (0,5 s, 1 s)
Measured value resolution		< 0.5 mm
Measuring frequency		approx. 1100 Hz in air
Switching point		13 mm ± 1 mm
Non-repeatability		± 1 mm acc. to DIN 61298-2
Hysteresis		max. 3 mm
Influence of ambient temperature		negligible
Influence of medium temperature		-25 µm/°C
Influence of medium pressure		-20 µm/bar
Switching time		- 0.5 s when tuning fork is covered - 1.0 s when tuning fork is uncovered
Switch-on delay		max. 3 s
Operating conditions
Installation conditions
	Installation position	see technical information (TI)
Ambient conditions
	Ambient temperature	-40 ... 70 °C (-40 ... 158 °F)
	Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
	Shock resistance	a = 300 m/s² = 30 g, 3 planes x 2 directions x 3 shocks x 18 ms, as per test Ea
	Vibration resistance	a(RMS) = 50 m/s², ASD = 1.25 (m/s²)²/Hz, f = 5 to 2000 Hz, t = 3 x 2 h
Process conditions
	Medium temperature	-40 ... 150 °C (-40 ... 302 °F)
	Process pressure (static pressure)	-1 ... +40 bar (-14.5 ... +580 psi)
	State of aggregation	liquid
	Density	min. 0.7 g/cm³
	Viscosity	1 ... 10000 mPa/s, dynamic viscosity
	Solid contents	< ∅5 mm
Mechanical specifications
Degree of protection		IP65 , NEMA 4X
Connection		valve connector M16
Material		process connection and short tube: stainless steel 316L (1.4401/1.4435) tuning fork: stainless steel 316L housing cover and connector: PPSU
Surface quality		R_a < 3.2 µm
Mass		approx. 169 g
Process connection		thread G1 acc. to ISO 228
Indication and operation
Display elements		The LED display is on the connection side. - green LED: indication of ready to operate - red LED: fault indication - yellow LED: operating mode indication
Function test		function test with test magnet (optional accessory)
Certificates and approvals
CSA approval		cCSAus Listed, General Purpose
Overspill protection		see approval (ZE)
General information
Supplementary documentation		technical information (TI) manual (BA) approval (ZE)
Supplementary information		Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable.
Accessories
Designation		see technical information (TI)
